All about this item
- Square steam outlet nozzle made of solid aluminum
- Milled from a solid block of aluminum
- Steam exits from the side and downwards
- Large aroma recess for additional scent application
- Simple installation by sliding on and securing
Aluminum steam outlet nozzle with large aroma recess

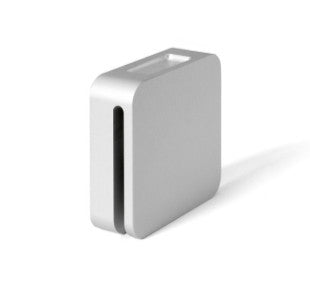

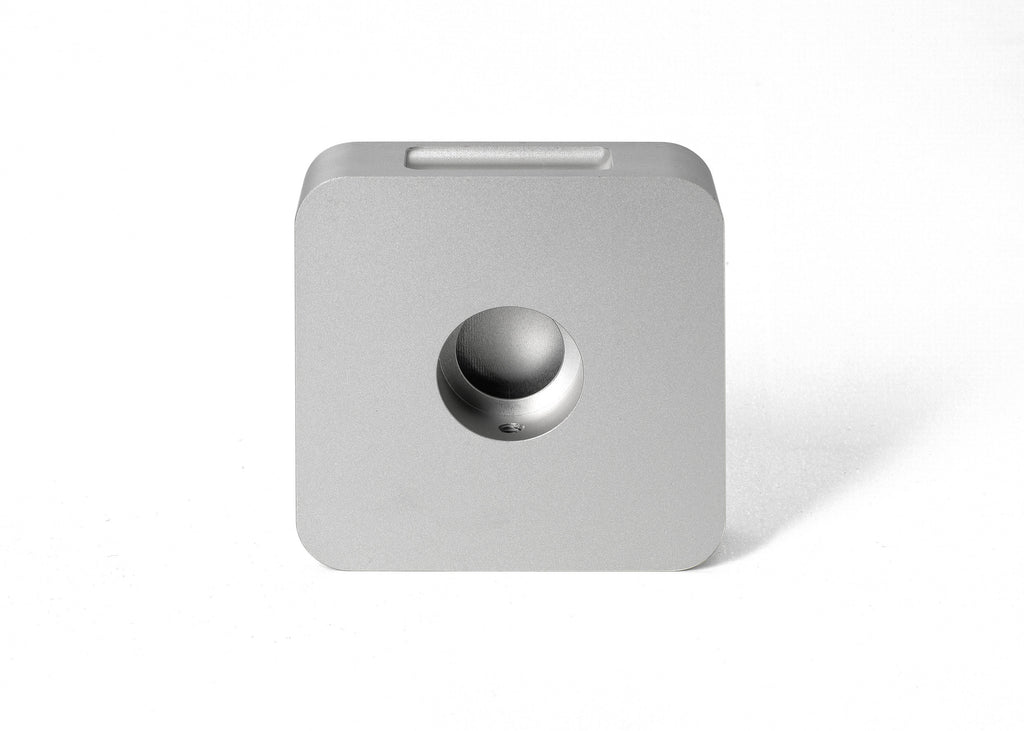

This square steam outlet nozzle is milled from a solid block of aluminum. Its robust design and clean shape make it a high-quality addition to your steam room. The steam exits from the side and downwards.
Scent of your choice
The large aroma recess allows for the application of a suitable steam room fragrance directly at the nozzle. Use only fragrance products approved for this application by the respective manufacturer and follow their dosage instructions. The duration of the scent depends on the product used, the dosage, and the steam operation.
Technical data
- Material: solid aluminum
- Production: milled from an aluminum block
- Shape: square
- Dimensions: approx. 80 × 80 × 30 mm
- Connection: universal connection for ½ and ¾ inch, 20 or 26 mm
- Steam outlet: side and downward
- Aroma recess: large recess on the top
- Mounting: slide on and secure with a grub screw on the underside

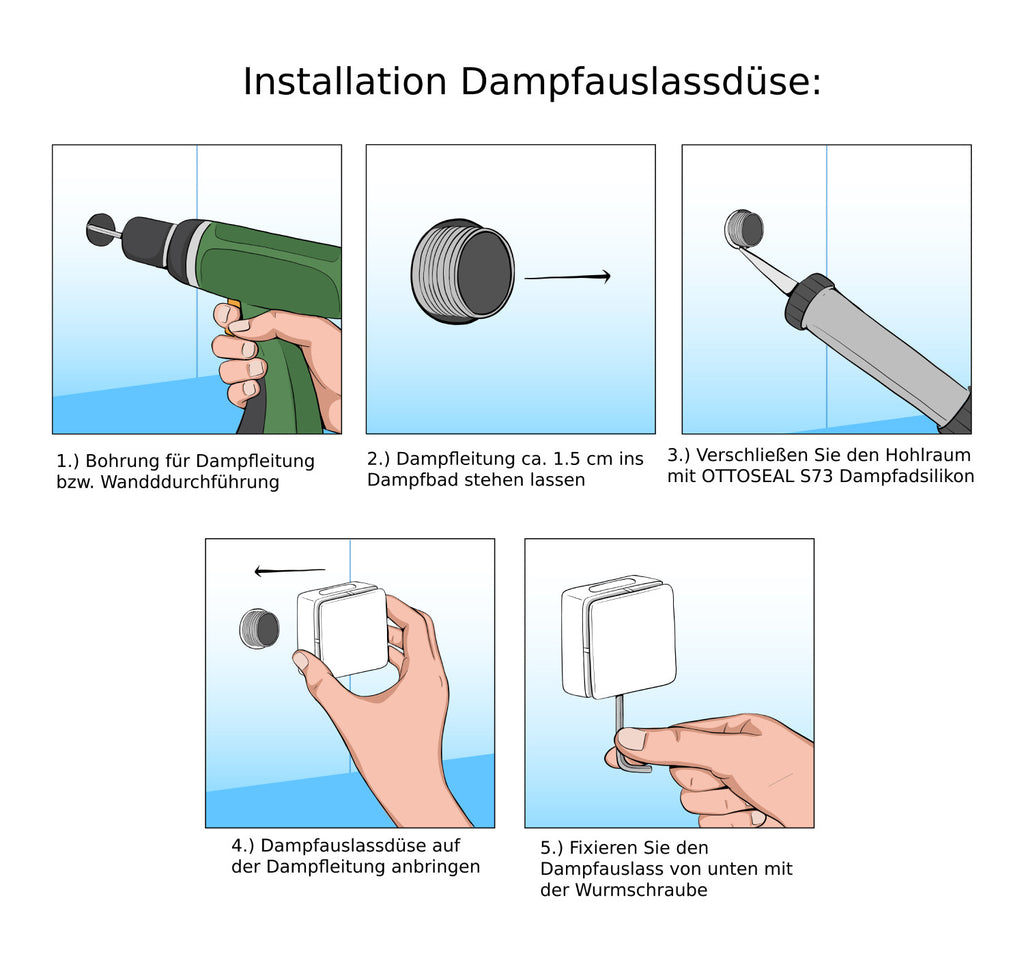

Installation
Allow the appropriate steam pipe to protrude approx. 1.5 cm from the finished tiled surface into the steam room. Slide the steam outlet nozzle onto the pipe and secure it with the grub screw on the underside. Align the nozzle so that the aroma recess is at the top.
Note: Observe the installation requirements of your steam generator when positioning. The nozzle and the escaping steam become hot. Avoid direct contact during operation and allow the nozzle to cool down before cleaning.
Produktsicherheit und Hersteller
Risk of scalding
The escaping steam can be very hot (up to 105 degrees Celsius). Keep hands, face, and other body parts away from the steam outlet.
Place the nozzle in a location that does not directly conflict with sitting or standing areas in the steam room. Maintain a distance of at least 60 cm.
Risk of fire
Ensure that no flammable materials (e.g., towels, clothing) are stored near the steam outlet.
Risk of slipping
Condensation can collect on the floor and cause a slipping hazard. Provide non-slip flooring or mats in the steam room area.
Children and animals
Keep children and pets away from the steam outlet, as they may not recognize the danger.
